Sliding gate design access control system face machine speed gate

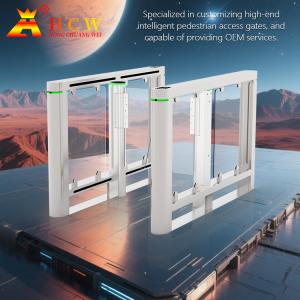

CW422 Fast anti-collision swing turnstile,use STC CPU chip brushless motor 6 pairs of infrared detection sensors, long life and high stability,
high efficiency and anti-tailing,support various IC/ID card readers, barcode readers,ID card reader, etc.,easy to hook up with the access control system.It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens, etc.
- Only authorized personnel can pass,and when unauthorized personnel break in, it will emit sound and light buzzer alarm
- Flexible selection of open and closed modes,two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
- Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
- Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time (additional horn is required)
- Anti-shock function, the electromagnetic lock will automatically lock the swing arm when it does not receive the door opening signal. When the swing arm is hit, the swing arm will automatically open to the set angle. The electromagnetic lock will automatically lock, with a maximum impact of 120Nm.
- With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, anti-tailing buzzer alarm (additional horn required)
- Remote control management function
- Can be run online or offline
- LED traffic direction indication, display traffic status
- When the power is cut off, the swing arm automatically opens the cabinet, the passage is in a smooth state, and personnel can pass freely to prevent panic
• 0.5s Lightning Response – Eliminate queues and congestion
• Military-Grade Anti-Crash Design – Safety meets efficiency
• Multi-Mode Verification – Face recognition, QR code, NFC – adaptable to all scenarios
• 100,000+ Trouble-Free Cycles – Industry-leading durability
• Smart Data Analytics – Real-time crowd monitoring & insights
| Technical parameter |
| Product model | CW422 |
| Power supply | AC220V±10%,50HZ±10% HZ |
| Working environment | -25℃-70℃ |
| Relative humidity | ≤90% |
| Motor | brushless motor |
| Motor power | 40W |
| Communication interface | switch value.RS232 |
| Number of passers | 30~40/min |
| Infrared quantity | 6pairs |
| Working life | 2 million times |
| Normal service life | 3 million times |
| Channel width size | 600mm~900mm |
| Swing material | 10mm Plexiglass |
| Product size | L 1600mm x W 120mm x H 965 mm |
| Chassis material | National standard 1.2~1.5mm 304 stainless steel |
| Packing weight | About 70 KG(single channel) |
| Application environment | Indoor or canopy |
| Configuration instructions | Without voice and battery |
